Salamander CT FORCE 20 SU Brass Pump - 2.0 Bar Single Universal

Special Price £585.30 Regular Price £780.40

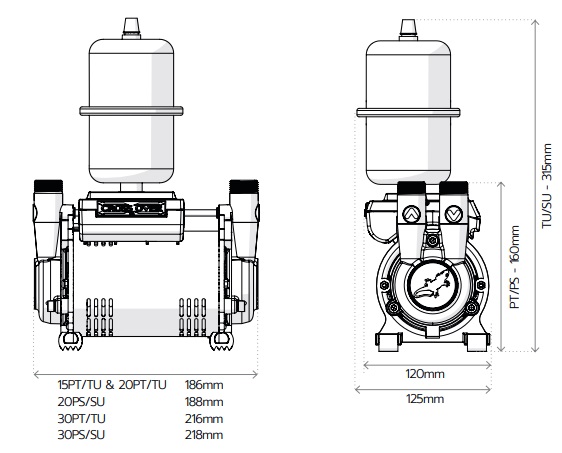

Length 187.8mm, Width 125mm, Height 315mm

Salamander CT FORCE 20 SU Brass Pump - 2.0 Bar Single Universal is available to buy in increments of 1

Availability:In stock

SKU

CTFORCE20SU

Length 187.8mm, Width 125mm, Height 315mm

CT Force 20SU is a 2.0 bar pressure, single ended, universal (negative head) brass pump. Reliable, high-quality and robust the CT Force 20SU has been designed with brass ends and impellers. The CT Force 20SU is compact and reliable offering an ideal solution to low water pressure. CT Force 20SU is suitable for positive and negative head, gravity fed systems.
Warranty 5 years
WRAS approval 1210047
dBA 49
Pump Type Regenerative
Mechanical seal Nitrile/PTFE/Ceramic
Anti-vibration feet Yes
Inlet Isolator(s) Yes
Flexible hoses 2
Pressure @ 16lpm (8lpm for singles) 1.5 Bar
Bar Pressure @ 8lpm(4lpm for singles) 1.8 Bar
Pressure @ Closed Head 2.0 Bar
Maximum Water Temperature 65°C
Pressure Vessel Air Pre- Charge N/A
Pump connections 3/4”BSP
Connections (UK) 3/4” Female x 15mm Push-Fit x 195mm long
Connections (ROI)* ¾” Female x 21mm Push-Fit x 195mm long
Type A.C Induction Motor
Duty rating Continuously Rated
Power Supply 230v
Current (full load) 1.25Amps
Power consumption 531 Watts
Fuse Rating 3 Amps
Power cable (pre-wired) 1.5 Meters
Enclosure Protection (IP Rating) IPX3

More Information
Price	£780.40
Color	Black
Delivery Days	2 to 3 Days
Length	100mm-200mm
Width	100mm- 200mm
Height	300-349mm
Shape	Round
Feature	Yes
Brand	salamander-pumps
Description	CT Force 20SU is a 2.0 bar pressure, single ended, universal (negative head) brass pump. Reliable, high-quality and robust the CT Force 20SU has been designed with brass ends and impellers. The CT Force 20SU is compact and reliable offering an ideal solution to low water pressure. CT Force 20SU is suitable for positive and negative head, gravity fed systems. Warranty 5 years WRAS approval 1210047 dBA 49 Pump Type Regenerative Mechanical seal Nitrile/PTFE/Ceramic Anti-vibration feet Yes Inlet Isolator(s) Yes Flexible hoses 2 Pressure @ 16lpm (8lpm for singles) 1.5 Bar Bar Pressure @ 8lpm(4lpm for singles) 1.8 Bar Pressure @ Closed Head 2.0 Bar Maximum Water Temperature 65°C Pressure Vessel Air Pre- Charge N/A Pump connections 3/4”BSP Connections (UK) 3/4” Female x 15mm Push-Fit x 195mm long Connections (ROI)* ¾” Female x 21mm Push-Fit x 195mm long Type A.C Induction Motor Duty rating Continuously Rated Power Supply 230v Current (full load) 1.25Amps Power consumption 531 Watts Fuse Rating 3 Amps Power cable (pre-wired) 1.5 Meters Enclosure Protection (IP Rating) IPX3
