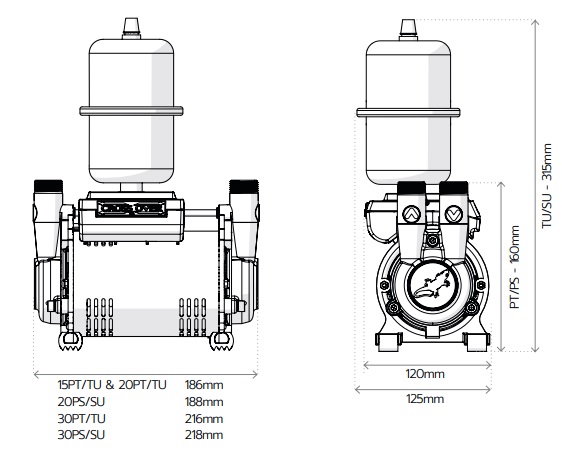

Length 186.2mm, Width 125mm, Height 315mm

CT Force 20TU is a 2.0 bar pressure, twin ended, universal (negative head) brass pump. The CT Force 20TU pump is part of our CT Force range, with a host of features including brass ends and impellers, 5 year warranty and Crossover technology to allow the pump to boost hot or cold water independently. CT Force 20TU is suitable for positive and negative head, gravity fed systems.Warranty 5 years, WRAS approval 1210047, dBA 54, Pump Type Regenerative, Mechanical seal Nitrile/PTFE/Ceramic, Anti-vibration feet Yes, Inlet Isolator(s) Yes, Flexible hoses 4, Pressure @ 16lpm (8lpm for singles) 1.5 Bar, Bar Pressure @ 8lpm(4lpm for singles) 1.8 Bar, Pressure @ Closed Head 2.0 Bar, Maximum Water Temperature 65°C, Pressure Vessel Air Pre- Charge N/A, Pump connections 3/4”BSP, Connections (UK) 3/4” Female x 15mm Push-Fit x 195mm long, Connections (ROI)* ¾” Female x 21mm Push-Fit x 195mm long, Type A.C Induction Motor, Duty rating Continuously Rated, Power Supply 230v, Current (full load) 1.25Amps, Power consumption 531 Watts , Fuse Rating 3 Amps, Power cable (pre-wired) 1.5 Meters, Enclosure Protection (IP Rating) IPX3
