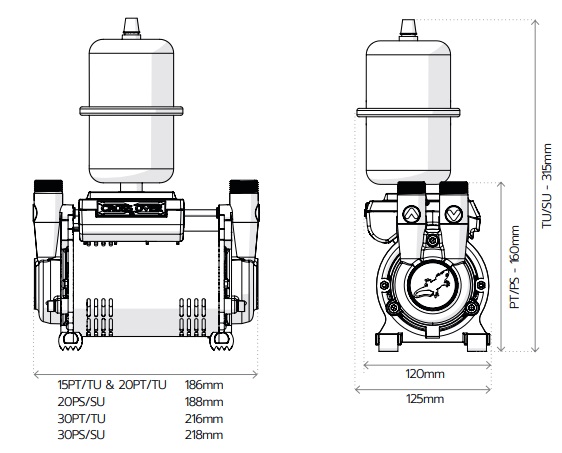

Length 216.2mm, Width 125mm, Height 315mm

CT Force 30TU is a 3.0 bar pressure, twin ended, universal (negative head) brass pump. The CT Force 30TU has been designed with brass ends and impellers and Crossover technology to allow the pump to boost hot or cold water independently. This high-quality pump is covered by a 5-year warranty. CT Force 30TU is suitable for positive and negative head, gravity fed systems. Warranty 5 years, WRAS approval 1210047, dBA 52.5, Pump Type Regenerative, Mechanical seal Nitrile/PTFE/Ceramic, Anti-vibration feet Yes, Inlet Isolator(s) Yes, Flexible hoses 4, Pressure @ 16lpm (8lpm for singles) 2.2 Bar, Bar Pressure @ 8lpm(4lpm for singles) 2.6 Bar, Pressure @ Closed Head 3.0 Bar, Maximum Water Temperature 65°C, Pressure Vessel Air Pre- Charge N/A, Pump connections 3/4”BSP, Connections (UK) 3/4” Female x 15mm Push-Fit x 195mm long, Connections (ROI)* ¾” Female x 21mm Push-Fit x 195mm long, Type A.C Induction Motor, Duty rating Continuously Rated, Power Supply 230v, Current (full load) 2.9 Amps, Power consumption 690 Watts , Fuse Rating 3 Amps, Power cable (pre-wired) 1.5 Meters, Enclosure Protection (IP Rating) IPX3
