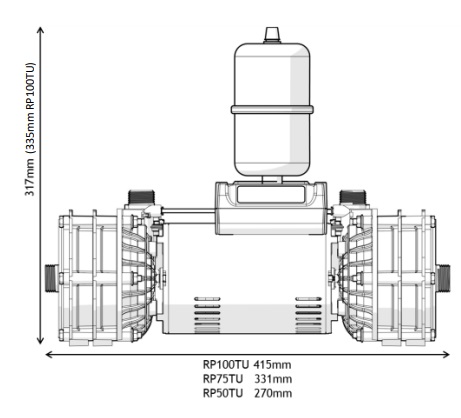

Length 415mm, Width 148mm, Height 335mm

RP100TU is a 3.0 bar pressure, twin ended, universal (negative head) centrifugal pump. The RP100TU is part of the Right Pump range, these pumps use centrifugal force to boost water pressure and flow making them quiet and powerful. Increase the hot and cold water pressure with an RP100TU. RP100TU is suitable for positive and negative head, gravity fed systems. This product replaced the ESP100. Warranty 3 years, WRAS approval 1810090, dBA 55.5, Pump Type Centrifugal, Mechanical seal Nitrile/PTFE/Ceramic, Anti-vibration feet Yes, Inlet Isolator(s) Yes, Flexible hoses 4, Pressure @ 16lpm (8lpm for singles) 2.65 Bar, Bar Pressure @ 8lpm(4lpm for singles) 2.85 Bar, Pressure @ Closed Head 3.0 Bar, Maximum Water Temperature 65°C, Pressure Vessel Air Pre- Charge 34 psi, Pump connections 3/4”BSP, Connections (UK) 3/4” Female x 15mm Push-Fit x 280mm long, Connections (ROI)* N/A, Type A.C Induction Motor, Duty rating Continuously Rated, Power Supply 230v, Current (full load) 4.6 Amps, Power consumption 1045 Watts , Fuse Rating 5 Amps, Power cable (pre-wired) 1.5 Meters, Enclosure Protection (IP Rating) IPX3
