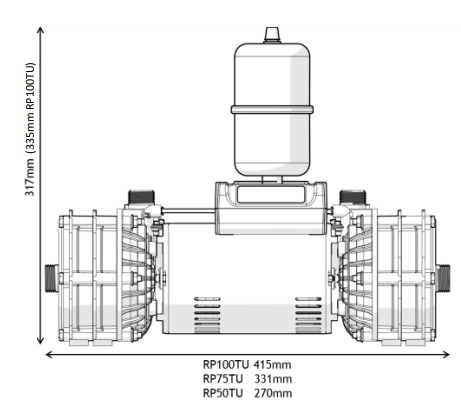

Length 331mm, Width 148mm, Height 317mm

RP75TU is a 2.2 bar pressure, twin ended, universal (negative head) centrifugal pump. The RP75TU is part of the Right Pump range, these pumps use centrifugal force to boost water pressure and flow making them quiet and powerful. Increase the hot and cold water pressure with an RP75TU. RP75TU is suitable for positive and negative head, gravity fed systems. This product replaced the ESP75.Warranty 3 years, WRAS approval 1810090, dBA 50.2, Pump Type Centrifugal, Mechanical seal Nitrile/PTFE/Ceramic, Anti-vibration feet Yes, Inlet Isolator(s) Yes, Flexible hoses 4, Pressure @ 16lpm (8lpm for singles) 1.9 Bar, Bar Pressure @ 8lpm(4lpm for singles) 2.1 Bar, Pressure @ Closed Head 2.2 Bar, Maximum Water Temperature 65°C, Pressure Vessel Air Pre- Charge 18 psi, Pump connections 3/4”BSP, Connections (UK) 3/4” Female x 15mm Push-Fit x 280mm long, Type A.C Induction Motor, Duty rating Continuously Rated, Power Supply 230v, Current (full load) 2.7 Amps, Power consumption 630 Watts , Fuse Rating 5 Amps, Power cable (pre-wired) 1.5 Meters, Enclosure Protection (IP Rating) IPX3
