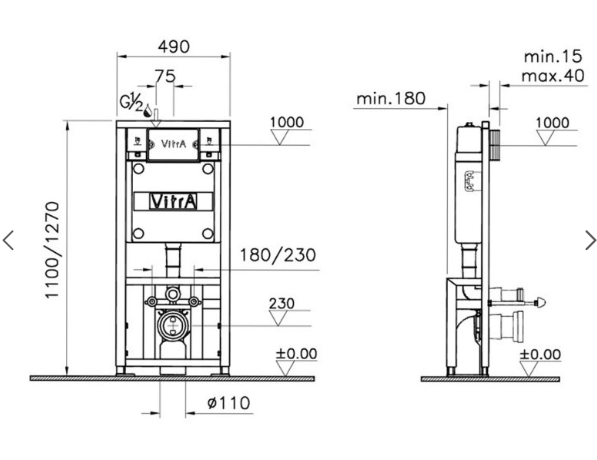

Height- 1100/1270mm

Width- 490mm

Cistern half flush- 3 litre

Cistren full Flush- 6 litre

• 3/6 litres concealed cistern
• Working Pressure 0.5 - 10 Bar
• Pipe is hidden behind the wall and the WC is lifted above the floor, providing a smoother and easier cleaning area
• The flush plate can be easily removed, providing ready access to internal fittings
• This concealed cistern installation offers flexibility in confined spaces
• Concealed frames and wall hung WC pans have been designed to support weights of up to 400kg
• Vitra test each and every cistern individually to ensure that it is 100% watertight
• The overflow pipe located within the valve is the products safety device
• The pipes performance is tested according to the standards of water flow
• The amount of water used during flushing is pre-determind to meet industry standards
• Products are tested to ensure that they operate perfectly before being passed
• Supplied with a 5 year guarantee from the manufacturer
